Android (Material Components)

android-mdc renders Material Components widgets over JNI, inside a checked-in Gradle project. The app theme is Theme.Material3Expressive.DayNight.NoActionBar, so light and dark follow the system.

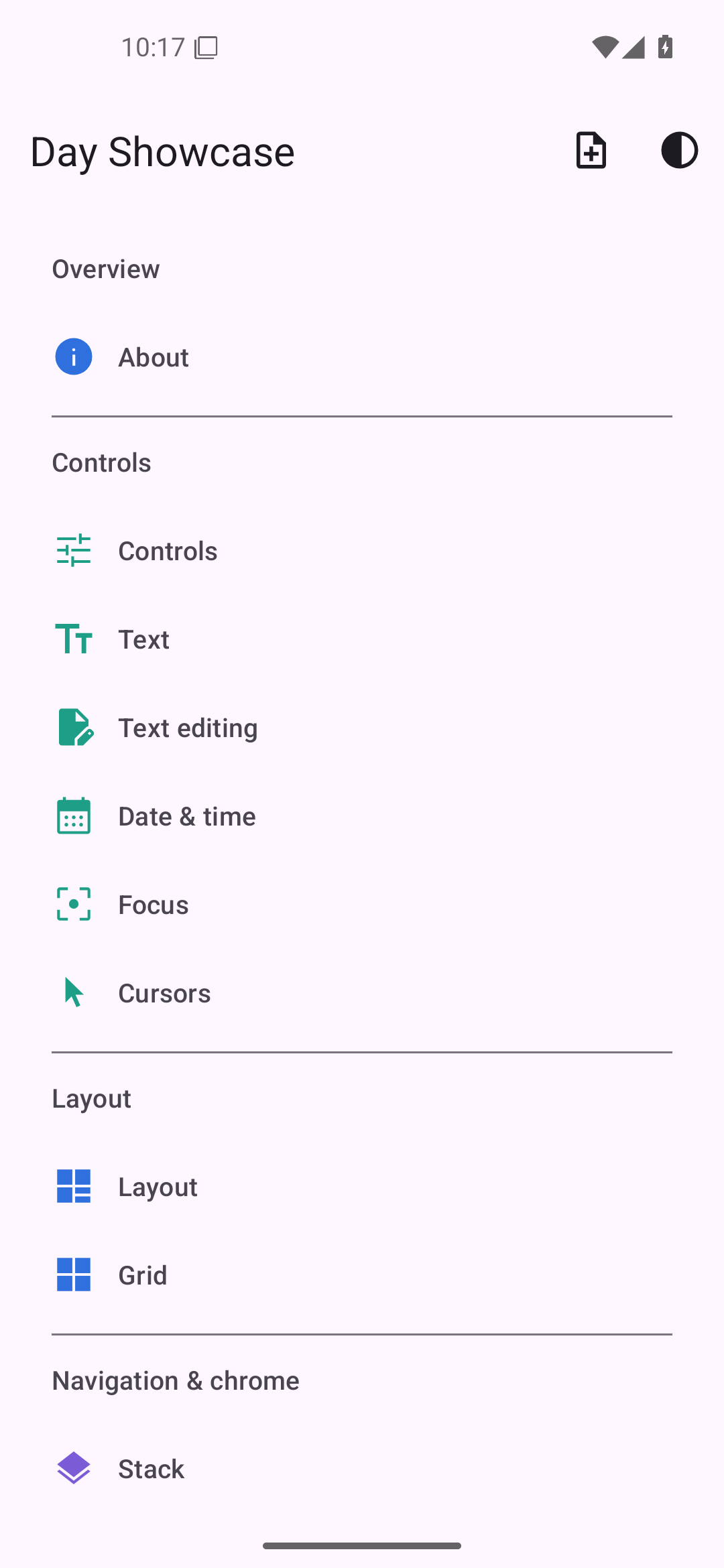

Home

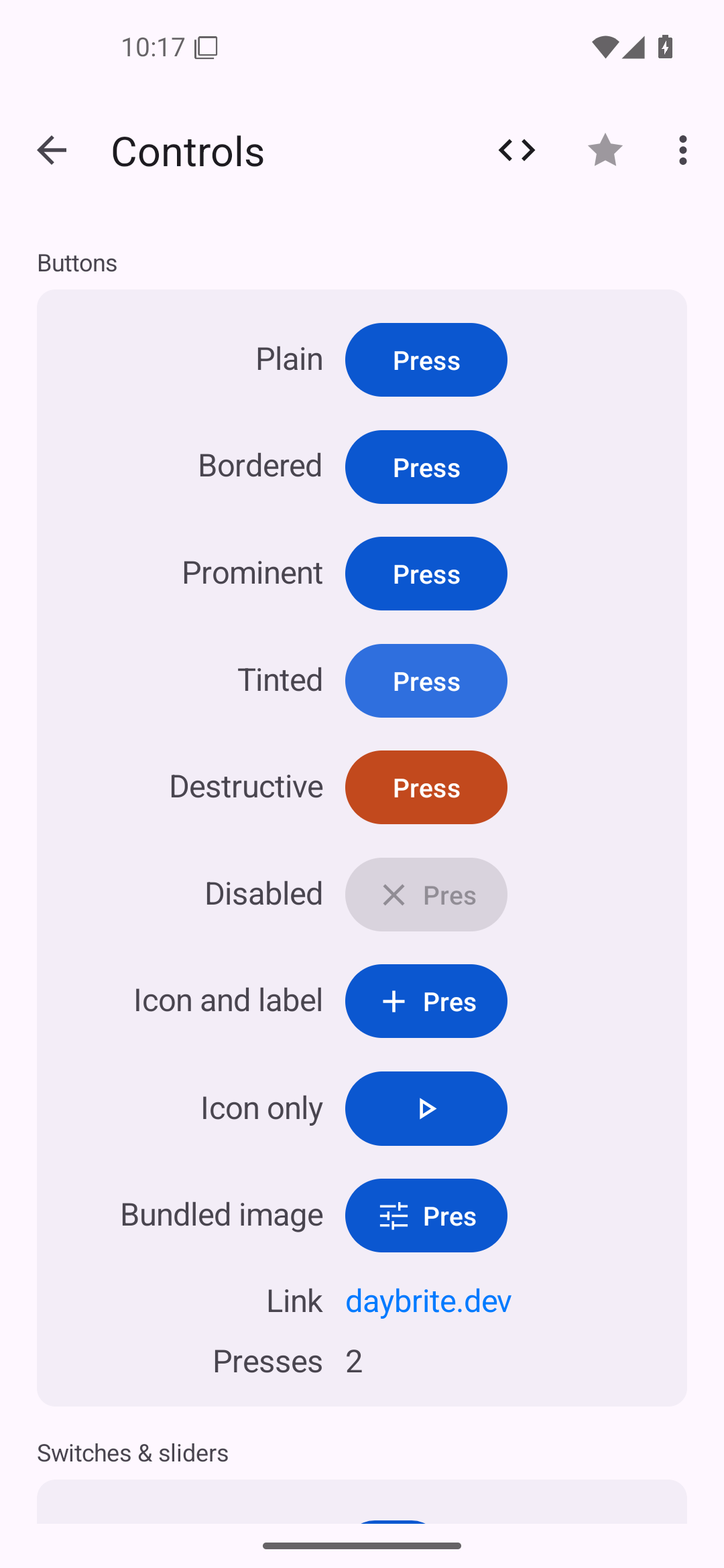

Controls

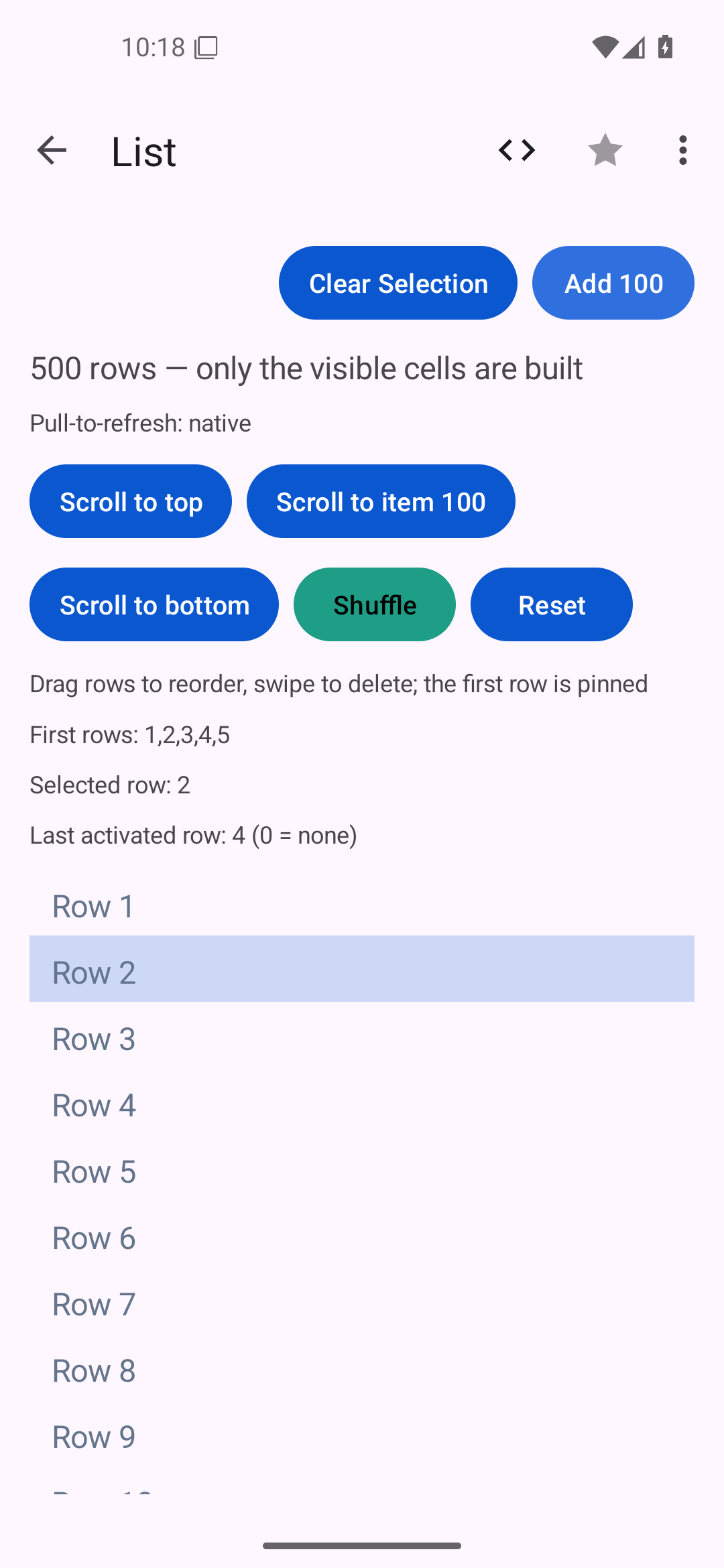

List

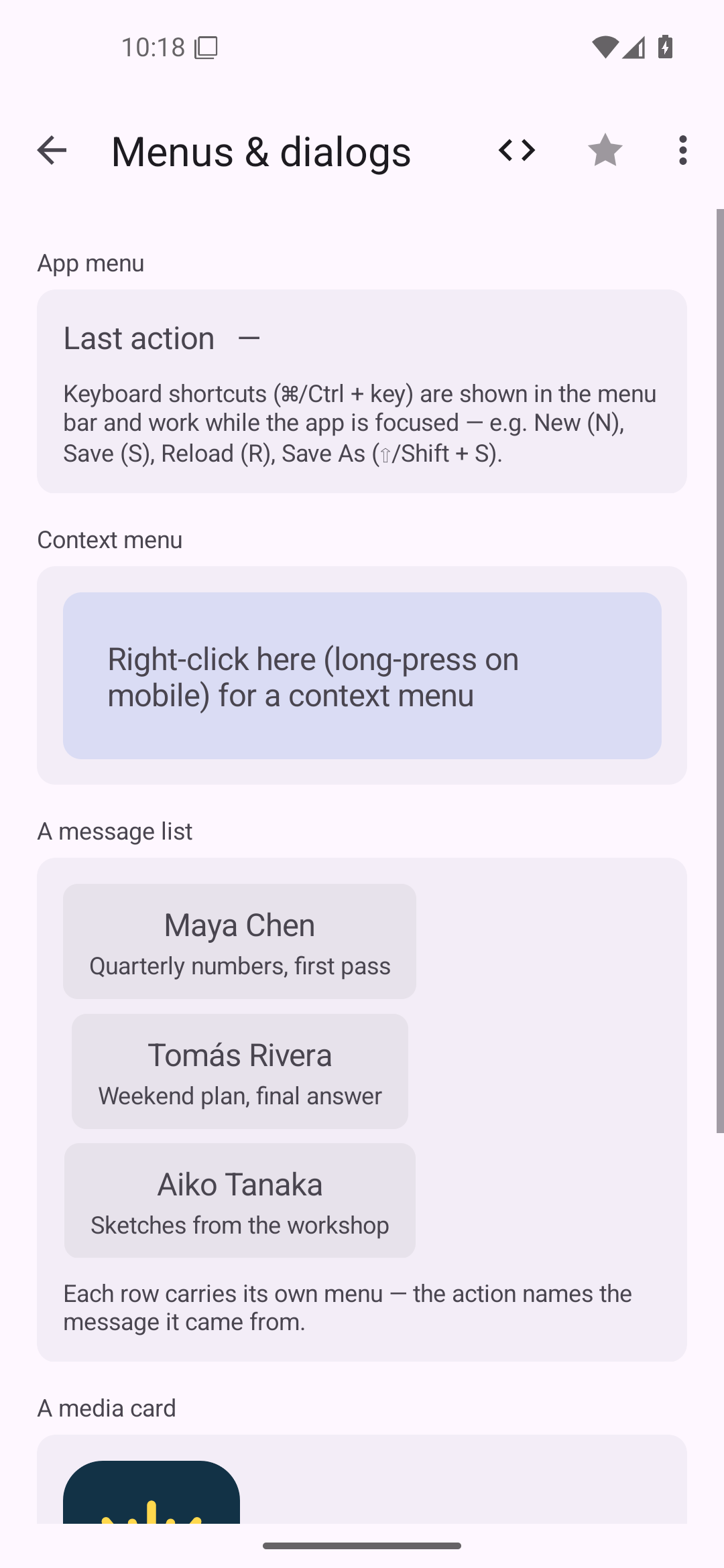

Menus & dialogs

Getting started

You need the Android SDK and NDK, JDK 17 or newer, and cargo-ndk; day doctor --toolkit android checks each one and prints what’s missing.

cargo install day-cli cargo-ndk
day new app my-app --toolkit android-mdc
cd my-app
day launch -p android-mdc         # installs on every connected device/emulator, right ABI each

Android Studio works as well — the Gradle scaffold calls back (day gradle-backend build) so a build started from the IDE rebuilds the Rust .so the same way.

day pack -p android-mdc           # release-signed .apk + .aab

Caveats and special considerations

Immersive top chrome is an opt-in. A dev.daybrite.day.EDGE_TO_EDGE <meta-data> entry in the app manifest makes the status bar transparent and floats the nav bar over full-bleed pages; selector items marked .immersive() keep the floating scrim bar, other pages get an opaque colorPrimary bar. Content pads itself by day::safe_area() (Layout). Without the opt-in, everything renders below the bars as before.
Accessibility annotations are partial — see the current limits.
Process death is a cold start unless your app persists its own state. Day does not restore a navigation stack for you.
No map piece. day-piece-map has no Android arm (it would pull in a Google Play services dependency); it renders as a placeholder.
The list is a ListView, not a RecyclerView. It recycles rows, but it is the framework’s older collection widget; very large or heterogeneous lists may want a native tweak.
Runtime permissions are yours to request. Day generates the manifest entries from your [permissions] table, and day-part-permissions performs the request — but Android’s never-asked and permanently-denied states are indistinguishable without app-side persistence.
The emulator leg in CI tolerates flakes; the build itself gates hard.

What each piece becomes

Both Material Components and framework android.widget classes are in play, and which one you get matters — the table is explicit about it.

Day piece	Android class
`column` / `row` / `stack` / `section`	a `ViewGroup` subclass that lays children out at absolute frames
`label`	`TextView`
`button`	`MaterialButton`
`toggle`	`MaterialSwitch`
`slider`	`Slider`
`text_field`	`TextInputLayout` wrapping `TextInputEditText`
`text_area`	`EditText` (framework)
`picker().menu()`	`Spinner`
`picker().segmented()`	a row of framework `Button`s
`picker().inline()`	`RadioGroup`
`progress(f)`	`LinearProgressIndicator`
`spinner()`	Material `LoadingIndicator` (M3 Expressive)
`divider`	`MaterialDivider`
`scroll`	`ScrollView` / `HorizontalScrollView`
`list`	`ListView` + a `BaseAdapter`
`nav`	`MaterialToolbar` over a fragment-driven `FrameLayout`
`nav_menu`	scrolling `TextView` rows
`tabs`	`BottomNavigationView`
`cover()`	a full-screen `FrameLayout` shell
`image`	`ImageView`
`canvas`	a `View` subclass replaying the display list onto `Canvas`
dialogs / alerts / prompts	`MaterialAlertDialogBuilder`
file dialogs	Storage Access Framework intents
context menus	`PopupMenu`
external `activity()`	`ProgressBar` (framework, circular)
external `combobox()`	`AutoCompleteTextView`
external `search_field()`	`EditText` with `IME_ACTION_SEARCH`
external `date_picker()`	`MaterialDatePicker`, or inline `DatePicker`
external `time_picker()`	`MaterialTimePicker`, or inline `TimePicker`
external `pull_refresh()`	`SwipeRefreshLayout`
external `webview()`	`WebView`
external `media()`	`VideoView`
external `lottie()`	`LottieAnimationView` (lottie-android)

Text measurement is Android’s own View.measure with an AT_MOST width probe, so TextView does the actual line breaking.

Gradle dependencies come from the pieces you use — Lottie and SwipeRefreshLayout each contribute their own coordinate, and Day merges them into the app module. You never edit Gradle per piece.
